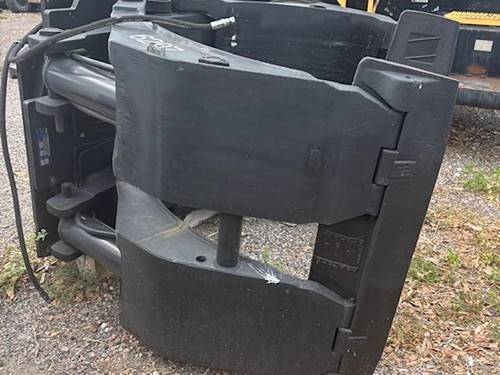

CLASS IV - Rotating Paper Roll Clamp -- Rental Retiree

General Specifications:
- Attachment Type: Paper Roll Clamp
- Maximum Roll Diameter Capacity: Approximately 60 inches
- Minimum Roll Diameter Capacity: Approximately 15 inches
- Clamp Opening Range: Approximately 15 to 60 inches
Load Capacity:
- Maximum Load Capacity: 4,600 lbs
Hydraulics:
- Hydraulic Pressure Requirement: 2,300 to 2,600 psi
- Flow Rate: 15 to 25 GPM
- Cylinder Type: Dual Hydraulic Cylinders
Construction:
- Frame Material: High-tensile Steel
- Arm Design: Cast Endarms
- Pad Material: Rubber-faced for damage protection
Weight:
- Total Weight: Approximately 1,400 lbs
Performance:
- Rotation: 360 degrees, continuous
- Opening Speed: Variable, controlled hydraulically
- Clamp Force Control: Adjustable for different paper types
Application:
- Primary Use: Handling large paper rolls in warehousing and manufacturing environments
- Optional Features: Load cushions, specialized arm configurations
