  • Manufacturer: Genie
  • Model Number: Z60 34
  • Type: Boom Lift
  • Subtype: Articulated Boom
  • Fuel Type Used: Diesel
  • Dimensions
    • Overall Length: 28 ft 8 in
    • Overall Width: 8 ft 1 in
    • Overall Height (Stowed): 8 ft 10 in
    • Wheelbase: 8 ft 2 in
  • Weight
    • Machine Weight: 22,870 lbs
  • Performance
    • Platform Capacity - Unrestricted: 500 lbs
    • Horizontal Reach: 36 ft 3 in
    • Up and Over Clearance: 24 ft 3 in
    • Gradeability: 45%
    • Turning Radius - Inside: 8 ft 2 in
    • Turning Radius - Outside: 18 ft 2 in
    • Drive Speed - Stowed: 3.1 mph
    • Drive Speed - Elevated: 0.68 mph
  • Power
    • Engine Manufacturer: Deutz
    • Engine Model: TD 2.9 L4
    • Engine Power: 74 hp
  • Hydraulic System
    • Hydraulic Tank Capacity: 21.9 gal
  • Platform
    • Platform Size: 7 ft 6 in
    • Platform Height: 60 ft
  • Other Features
    • Emission Rating: Tier 4 Final
    • Drive Configuration: AWD
    • Tire Size: 38 in
    • Steering Configuration: 2WS

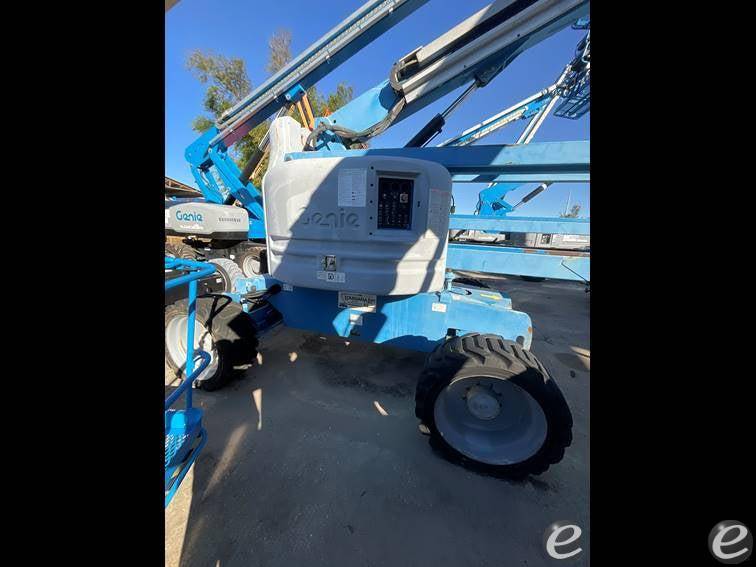

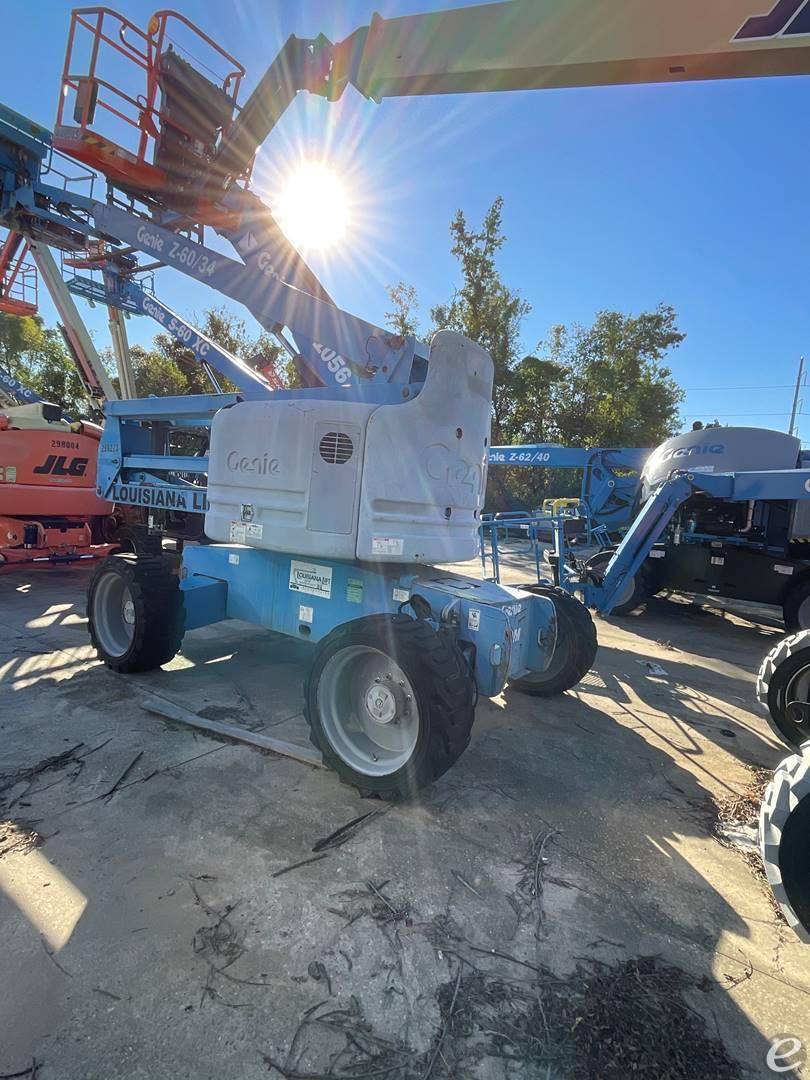

2012 Genie Z-60/34

articulated boom

$22,500 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Brandon McClendon

ADDRESS
Burwell Material Handling
15151 Airline Hwy
Baton RougeLouisiana 70879
ATTRIBUTES
STOCK #:
EQ0000510
YEAR:
2012
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
60 ft
SERIAL #:
Z6012-10902
CONDITION:
Used

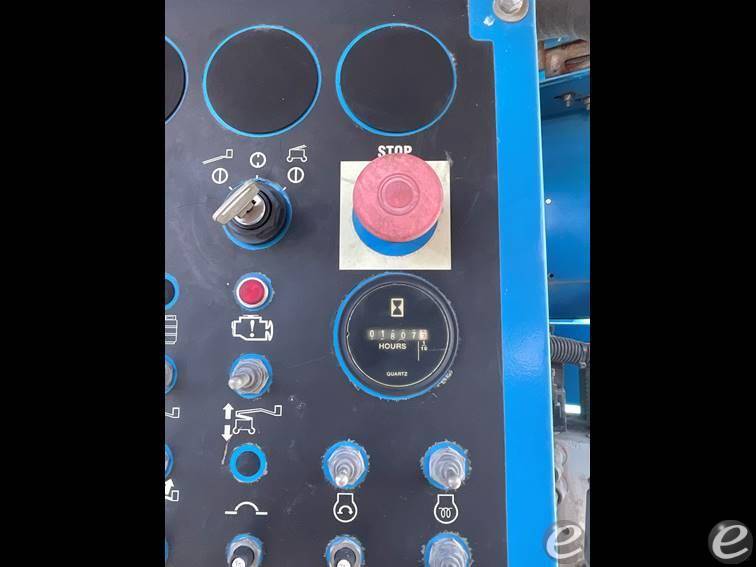

HOUR METER:
1807
UNIT LOCATION:
Louisiana [70879]
DESCRIPTION:
60FT ARTICULATING BOOMLIFT, ,
POST DATE:
3/4/2026
Reviews
Useful
Not

The Genie Z60 34 articulated boom lift is a solid piece of equipment for anyone needing to work at heights. I used one on a recent job to access some tricky areas on a commercial site, and it really impressed me with its reach and ease of maneuverability. The diesel engine roared to life without any fuss and provided ample power throughout the day. It was refreshing to have a lift that didn't feel like you were wrestling with it at every turn; instead, it handled smoothly, even in tight spots. Overall, if you're looking for reliable performance and flexibility in a boom lift, this one's definitely worth considering.



Review by Mark Thompson (6/16/2025)
